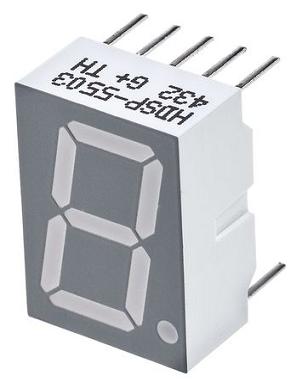

Broadcom HDSP-5503

The HDSP-5503 is a 14.2mm Seven Segment Display designed for viewing distances up to 7m. The numeric device features a right hand decimal point. This is a common cathode device and this display is ideal for most applications.

• Industry standard size
• Industry standard pinout
• Excellent appearance
• Evenly lighted segments
• Mitered corners on segments
• Design flexibility
• Common cathode
• Single digit
• Right hand decimal point
• Categorized for luminous intensity
• High light output
• High peak current
• Excellent for long digit string multiplexing

LED Colour: Red

Forward Current If: 20mA

Forward Voltage: 2.1V

Luminous Intensity: 3.7mcd

No. of Digits / Alpha: 1

Character Size: 14.22mm

Common Connection: Common Cathode

Klik op de link voor datasheet.
