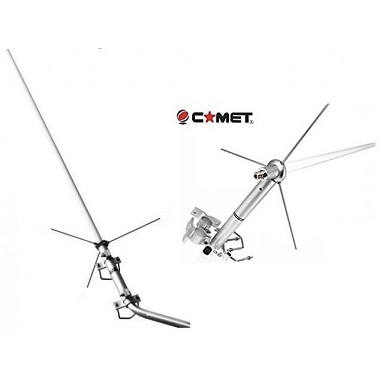

Comet GP9N

The Comet GP9N is a high gain dual band base antenna made out of three sections. For use on 144 / 430 MHz, wide band reception on 100 - 170 / 350 - 470 MHz.

The Comet GP-series are one of the best in the market using Comet's SLC system. The SLC system is an advanced mechanism developed originally by Comet in order to greatly improve the gain on Dual and Triple band antennas. Through the implementation of the Air-Core Type Shaping Element Phase System and the Phosphor Bronze Element the loss during the existing Phase Shift Peak has been substantially reduced.

Completely factory tuned and no adjustment is necessary. The fiberglass construction assures long durability and is fully water resistance.

Technische gegevens:

Electrical type: 144 MHz: 5/8 λ 3-step C Phase / 430 MHz: 5/8 λ 8-step

Gain: 144 MHz: 8.5 dBi / 430 MHz: 11.9 dBi

Maximum continuous power: 200 Watts SSB

Impedance: 50 Ohm

Polarization: Linear vertical ·  Mast Ø: 30 - 62 mm

Max wind resistance: 108 km/h

Height: 5150 mm

Weight: 2200 gram

Mounting type: On mast

Let op: Deze antenne heeft een professionele "N" connector aansluiting!

Heb je een standaard PL-259 “bakkies plug” aan je kabel zitten,

klik op deze link voor de verloopstekker.

In verband met de afmetingen kan deze alleen worden afgehaald in onze winkel te Schagen.

Wij kunnen deze dan ook niet versturen.
