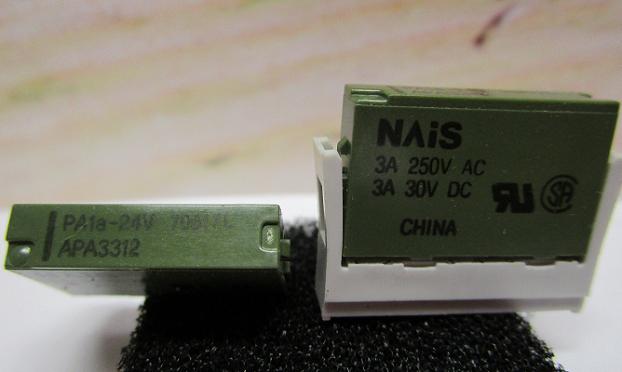

Panasonic APA3312 / PA1a-24

• Slim size (width 5 mm .197 inch, height 12.5 mm .492 inch) permits higher density ounting

• Wide switching capacity: Control from 100μA 100 mV to 5 A 250 V AC, 30 V DC

• High sensitivity: 120 mW (Nominal) (5 to 18 V DC type)

• High surge voltage (4000 V) and high breakdown voltage (2000 V)

• Shock & vibration resistance (functional): Min. 147m/s2 {15 G}

• SIL (single in line) terminal layout

• Reinforced according to IEC1131-2 (TÜV)

TYPICAL APPLICATIONS

• Interface relays for programmable controllers

• Output relays for measuring equipment, timers, counters and temperature controllers

• Industrial equipment, office equipment

SPOEL GEGEVENS:

Spoelspanning nominal 24volt DC

Pick-up voltage  16,8volt DC

Drop-out voltage 1,2volt

Spoelweerstand 3200 ohm

CONTACT GEGEVENS:

Schakel capaciteit: 5ampere 250volt AC / 5ampere 30volt DC

Contact material: Gold-clad silver alloy

Relays wordt geleverd inclusief socket.

Voor datasheet klik op deze link
