Quansheng - UV-K5

Vergelijkbaar met CRT FP00 en de Baofeng UV-5R

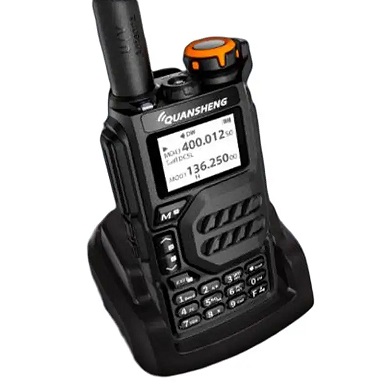

The Quansheng UV-K5 is a compact dual band handheld transceiver with many interesting features like a cross-band repeater, VOX function, Airband reception, USB-C charging and more. You can use the radio for 144-146 / 430-440 MHz and will be delivered with a 1600 mAh Li-Ion battery pack and table charger.

Transmitter

Power output (Watts): VHF: 5 Watts / UHF: 4 Watts

Modulation limit: F3E (12.5 kHz) F3E (25 kHz)

Adjacent channel power: 12.5 kHz: 60 dB / 25 kHz: 70 dB

Max. frequency deviation: 12.5 kHz: ≤2.5 kHz / 25 kHz: ≤5 kHz

Stray power: ≤7.5 uW

Residual modulation: 40 dB

Emission current: ≤1.5 A

Receiver

Sensitivity 50-76 MHz: -121 dBm for 12 dB SINAD (FM)

Sensitivity 76-108 MHz: -110 dBm for 20 dB SINAD (WFM)

Sensitivity 108-135.9975 MHz: -113 dBm for 10 dB SINAD (AM)

Sensitivity 108-135.9975 MHz: -121 dBm for 12 dB SINAD (FM)

Sensitivity 136-173.9975 MHz: -123 dBm for 12 dB SINAD (FM)

Sensitivity 174-349.9975 MHz: -123 dBm for 12 dB SINAD (FM)

Sensitivity 350-399.9975 MHz: -123 dBm for 12 dB SINAD (FM)

Sensitivity 400-469.9975 MHz: -123 dBm for 12 dB SINAD (FM)

Sensitivity 470-599.9975 MHz: -121 dBm for 12 dB SINAD (FM
