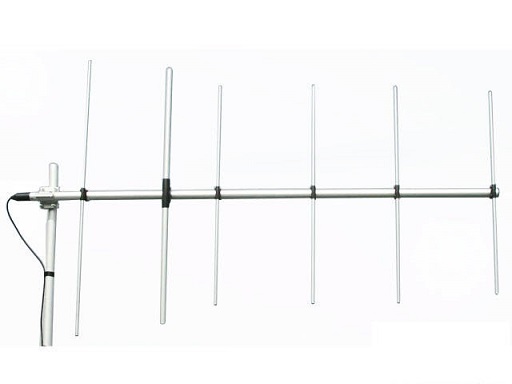

Sirio WY-140-6N

Artikelcode: 7042
Prijs: EUR 129.00
Verzendkosten: EUR 0.00
Voorraad: in voorraad

Omschrijving:

Type: Basis antenne VHF

Frequentie: 140 - 160 MHz

Opbouw: 6 Element Yagi

Afmetingen:  201 x 109cm

Gain: 10.5dBi.

Vermogen: 200 Watts



Omschrijving:
• Base station antenna, Directional
• Wide band, High-gain
• Highly symmetrical radiation pattern in both planes (E and H)
• Protection from static discharges DC-ground
• Made of anodized aluminium alloy
• Stacked and bayed array for more gain
• Optional: tilting bracket for +-20°



Electrical Data:
• Type: 6 elements yagi antenna
• Frequency range:  140-160 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): beamwidth at -3 dB =  80° at center freq.
• Radiation (E-plane): beamwidth at -3 dB =  60° at center freq.
• Radiation angle: 0°
• Front to back ratio: ≥ 16 dB
• Polarization: linear vertical or horizontal
• Gain: 10.5 dBi
• SWR in bandwidth: ≤ 1.5:1
• Max. power: 200 Watts (CW) at 30° C
• Feed system / position: RG303 teflon coax with balun / inside boom
• Connector: N-female with rubber protection cap



Mechanical Data:
• Materials: Anodized 6063-T5 Aluminium, EPDM rubber, thermoplastic UV stabilized, Chromed brass
• Wind load / resistance: 184 N at 150 Km/h / 120 Km/h
• Wind surface: 0.15 m²
• Dimensions (approx.):  2010 x 1085 mm
• Weight (approx.):  2440 gr
• Tourning radius: 1940 mm
• Operating temperature: -40° C to +60° C
• Mounting mast: Ø 35-52 mm
