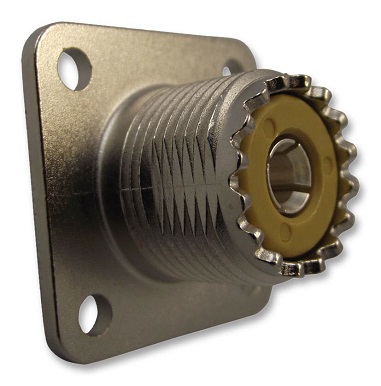

83-1R (SO-239) - RF / Coaxial Connector, UHF Coaxial, Straight Flanged Jack, Solder, Brass



The 83-1R (SO-239) is a RF Connector, UHF series, UHF straight Jack with silver-plated brass contacts and solder contact termination. Body made up of zinc die-cast with nickel-plated finish and PBT insulator. The UHF coaxial connector is general purpose units developed for use in low frequency system of 300MHz. UHF connector is popularly used because of its ease of assembly. The UHF solderable screw-on termination feature requires no specialized crimping tools.

Large-size threaded coupling is a rugged design



4-hole Flange mounting

Standard polarity

Standard thread direction

500V Peak voltage rating

500 Mating cycles

-65 to 165°C Temperature range



RF Communications, Communications & Networking, Aerospace, Defence, Military
