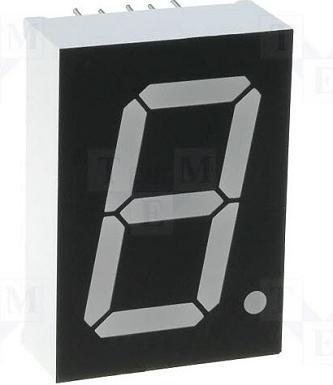

KINGBRIGHT SA10-21EWA Jumbo

The SA10-21EWA is a 25.4mm single digit Numeric Display with white diffused lens. The high efficiency red source device is made with gallium arsenide phosphide on gallium phosphide orange light emitting diode.

• 1" Digit height
• Low current operation
• Excellent character appearance
• High light output
• Easy mounting on P.C. boards or sockets
• Mechanically rugged
• Grey face, white segment
• Common anode, right hand decimal

LED Colour:  Red

Forward Current If:  20mA

Forward Voltage: 4V

Luminous Intensity:  24mcd

No. of Digits / Alpha: 1

Character Size:  25.4mm

Common Connection:  Common Anode

Klik op de link voor datasheet.
