KINGBRIGHT SA10-21GWA Jumbo

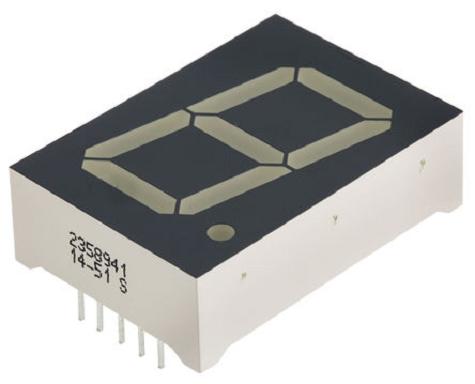

The SA10-21GWA is a 25.4mm single digit Numeric Display with white diffused lens. The green source device is made with gallium phosphide green light emitting diode.

• 1" Digit height
• Low current operation
• Excellent character appearance
• High light output
• Easy mounting on P.C. boards or sockets
• Mechanically rugged
• Grey face, white segment
• Common anode, right hand decimal

LED Colour:              Green

Forward Current If:    20mA

Forward Voltage:        4.4V

Luminous Intensity:    24mcd

No. of Digits / Alpha: 1

Character Size:            25.4mm

Common Connection: Common Anode

Klik op de link voor datasheet
