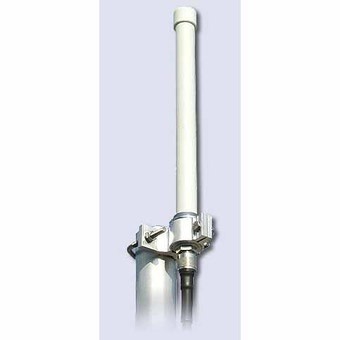

Basisantenne

Artikelcode: 2411
Prijs: EUR 69.00
Verzendkosten: EUR 0.00
Voorraad: in voorraad

Omschrijving:

Features:
• Base station antenna, Omnidirectional
• Mono-band, High-gain
• DC-ground protection
• High quality PCB radiator protected by glass fibre tube
• For WLAN system
P/N 2130220.00 SCO-2.4-6

Electrical data
• Type: 3x1/2λ colinear dipole array
• Frequency range: 2300-2500 MHz for WLAN system
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth at -3 dB = 22°
• Radiation angle: 0°
• Polarization: vertical
• Gain: 3.9 dBd - 6 dBi
• V.S.W.R. in bandwidth: ≤ 1.5:1
• Max. power: 20 Watts (CW) at 50° C
• Feed system / position: direct DC-ground / base
• Connection: N-female

Mechanical data
• Materials: Aluminium, Glass fibre, Brass, PCB
• Wind load / resistance: 11 N at 150 Km/h / 200 Km/h
• Wind surface: 0.01 m²
• Height (approx.): 325 mm
• Weight (approx.): 350 gr
• Operating temperature: -40° C to +80° C
• Mounting mast: Ø 35-54 mm
