Rens Electronics

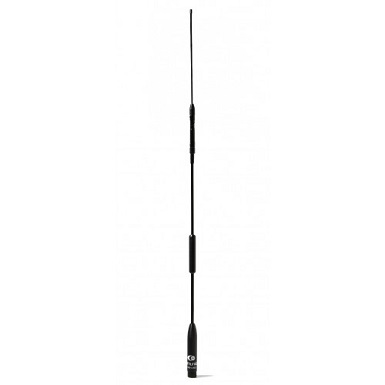

Komu PWR SRH-999 SMA-M

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Frequency:
...TX:  50 MHz / 144 MHz /  430 MHz / 1200 MHz
...50 MHz and 144 MHz is 1/4 Wave
...430 MHz is 1/2 Wave
...1200 MHz is 2x5/8 wave
...RX: FM 120 / 150 / 300 / 800 / 900 MHz
• Gain: 4 dBi (430 MHz)
• Max Power Rating: 10 Watt
• Impedance: 50 Ω
• Height: 500 mm
• Connector: SMA-Male
