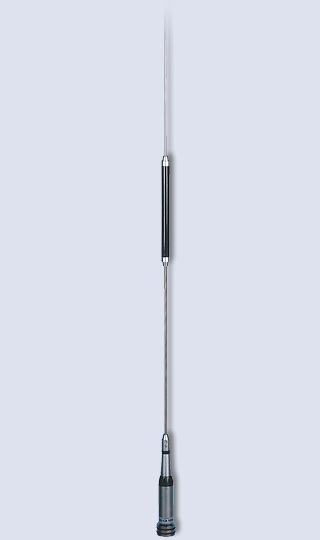

Sirio SG-CB1000 antenne

Features:

• CB & 10m Mobile antennas
• Tunable from 27 to 28.5 MHz
• 17/7 PH tapered stainless steel whip
• 90° tiltable whip and detachable for car-wash
• Wide range of optional mounting bases available
• Suitable fr magnetic mount

Electrical Data:

• Type: central loaded
• Frequency range: 27 … 28.5 MHz
• Bandwidth @ SWR ≤ 2: ≥ 550 KHz (50 channel)
• Max. power: 60 Watts (CW) continuous, 180 Watts (CW) short time

Mechanical Data:

• Materials: Chromed brass, Copper, Fiberglass, Stainless steel
• Height (approx.): 1000 mm / 3.28 ft
• Weight (approx.): 320 gr / 0.71 lb

Het is dus alleen de antenne zonder voet.
