Rens Electronics

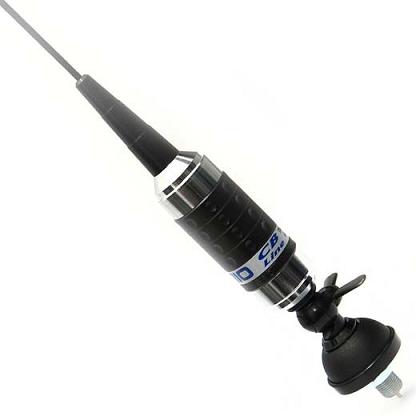

Sirio Super Carbonium

Features:
• CB & 10m Mobile antenna
• Tunable from 27 to 28.5 MHz
• 17/7 PH tapered stainless steel whip
• 180° inclination and adjustable whip, detachable for car-wash
• Suitable for magnetic mount
P/N 2204206.01 SUPER CARBONIUM 27

Electrical Data
• Type: base loaded
• Frequency range: 27-28.5 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Bandwidth @ SWR ≤ 2:
SUPER CARBONIUM 27: ≥ 1850 KHz
• SWR @ res. freq.: ≤ 1.2
• Max. power:
SUPER CARBONIUM 27: 35 Watts (CW) continuous, 250 Watts (CW) short time
• Standard mount : "N"
• Cable lenght / Type : 4 m / RG 58

Mechanical Data
• Materials: Brass, Copper, Nylon, Stainless Steel
• Height (approx.):
SUPER CARBONIUM 27: 1400 mm
• Weight (approx.): 480 gr
• Mounting hole: Ø 12.5 mm.

In verband met de afmetingen kan deze alleen worden afgehaald in onze winkel te Schagen.

Wij kunnen deze dan ook niet versturen.
