BPW24
Artikelcode: 4780
Prijs: EUR 3.00
Verzendkosten: EUR 0.00
Voorraad: in voorraad

Omschrijving:

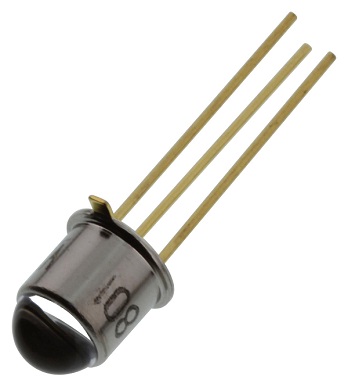

The BPW24 is a high sensitive Silicon Planar Photodiode in a standard sealed metal case with a glass lens. A precise alignment of the chip gives a good coincidence of mechanical and optical axes. The device features a low capacitance and high speed even at low supply voltages. It is suitable for visible and near infrared radiation.



Spectrums Detected                          Infrared, Visible Light
Wavelength of Peak Sensitivity         900nm
Package Type                                   TO-18
Mounting Type                                  Through Hole
Number of Pins                                 2
Diode Material                                   Si
Minimum Wavelength Detected        600nm
Maximum Wavelength Detected       1050nm
Length                                               5.5mm
Width                                                 5.5mm
Height                                                6.15mm
Angle of Half Sensitivity                    12 °
Polarity                                              Forward
Peak Photo Sensitivity                       0.6A/W



Voor datasheet, klik op deze link
