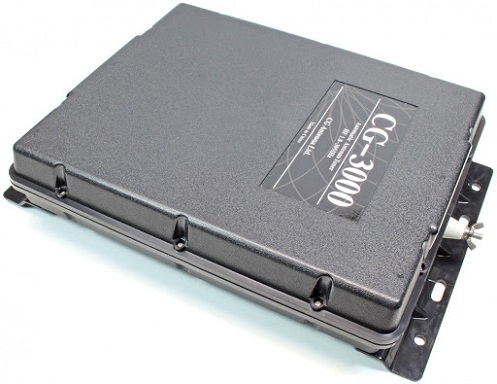

CG-3000 automatic antenna tuner (ATU) can cover whole HF amateur bands.
It uses multi signal processing circuit to switch L/C to make perfect matching between your radio and antenna system.
Fast tuning, less than 2 seconds for first initialize matching. 200 memory channels store the minmum SWR value to make further tuning.
• Working Frequency: 1.6 - 30MHz (50 MHz not guaranteed)
• Input Impendence: 50 Ohm
• Max. Input Power: 200W PEP
• Min. Input Power: 10W
• Power Supply: 13.8VDC +/-10%
• Current Drain: <0.8A
• Auto Tuning Time: Approx, 2 sec. (first time tuning)* Memory Channels: 200
• Usable Wire Lenght: 6 - 30 MHz > 2.4 Meters, 1.6 - 30 MHz > 8.0 Meters
|
