Rens Electronics

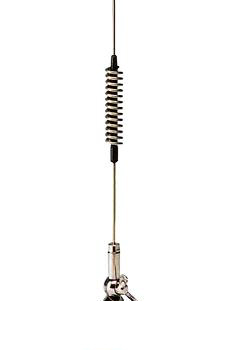

Colineair Antenne

Antenne zonder voet.

Features:
• Mobile antenna, Mono-band
• Medium-gain, Omnidirectional
• 17/7 PH stainless steel spring whip
• Supplied with nylon reinforce part inside the spring whip
• 180° inclination and adjustable whip, detachable for car-washes access
• Black chrome version available
• Magnetic mount version available
P/N 2205505.32 SU 370-490 chrome SL mount

Electrical Data
• Type: 1/4 λ + 1/2 λ Colinear
• Frequency range: from 368 to 490 MHz tunable by cutting
• Impedance: 50Ω unbalanced
• Radiation: 360° omnidirectional
• Polarization: vertical
• Gain: 3.5 dB ref. to a λ /4 whip
• Bandwidth @ SWR 1.5: ≥ 20 MHz at 368 MHz
• SWR @ res. freq.: ≤ 1.2
• Max Power: 100 Watts
• Feed System / Position: Direct / Base
• Standard mount: "SL", mounting hole Ø 19 mm, cable 5m RG 58
• Alternative mount: MAG H 12 S magnetic mount, cable 3.6m RG 58 w/ PL259-m

Mechanical Data
• Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
• Height (approx.): 745 mm
• Weight (approx.): 420 gr
