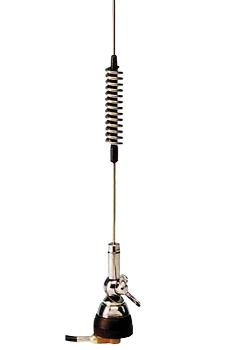

Colineair PMR 446MHz

Features:
* Mobile antenna, PMR frequency

* Medium-gain, Omnidirectional 5dBi
* 17/7 PH stainless steel spring whip

* Supplied with nylon reinforce part inside the spring whip
* 180° inclination and adjustable whip, detachable for car-washes access

Electrical Data
* Type: 1/4 λ + 1/2 λ Colinear
* Frequency 446 MHz.
* Impedance: 50Ω unbalanced
* PL-259 connector

* Radiation: 360° omnidirectional
* Polarization: vertical
* Gain: 3.5 dB ref. to a λ /4 whip
* Bandwidth @ SWR 1.5: ≥ 20 MHz at 368 MHz
* SWR @ res. freq.: ≤ 1.2
* Max Power: 100 Watts
* Feed System / Position: Direct / Base
* Standard mount: "SL", mounting hole Ø 19 mm, cable 5m RG 58

Mechanical Data
* Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
* Height (approx.): 745 mm
* Weight (approx.): 420 gr
