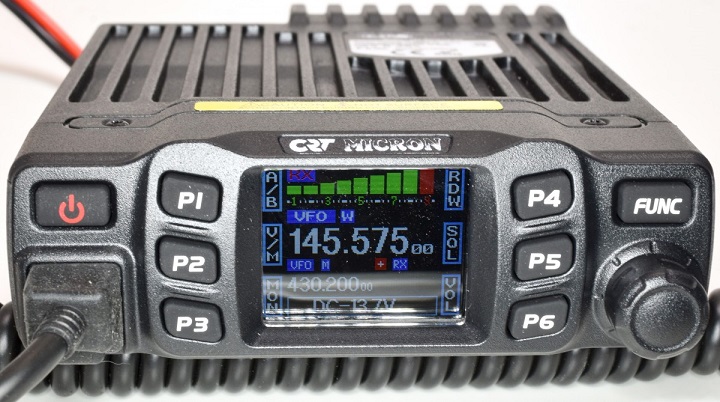

CRT MICRON U/V-V2 - with VOX

FEATURES, FUNCTIONS AND SPECIFICATIONS:

• Frequencies: RX/TX: 144-146 MHz / 430-440 MHz
• Mode: FM (narrow band and wide band)
• 3 levels power; Low: 5 Watts / Middle: 15 Watts / High: 25 Watts (with large cooling box)
• Memories: 200 channels
• Channel spacing: 12.5 / 20/25 KHz
• Step of increment: 2.5 / 5 / 6.25 / 10 / 12.5 / 20 / 25 / 30 / 50 KHz
• Working: UU / UV / VU / VV
• TONE BURST: 1000 Hz / 1450 Hz / 1750 Hz / 2100 Hz
• CTCSS / DCS (encoder/decoder) 52 CTCSS / 1024 DCS
• DTMF
• DOUBLE WATCH function
• TOT function
• CTCSS / DCS SCAN function (search code)
• SCAN function (automatic search for busy channels )
• REVERSE function (the current channel RX frequency will be switched to TX frequency)
• TALK AROUND function (allows to invert frequencies and encodings without passing through a relay)
• Power supply : 13.8 VDC

Bonus:
• Backlit keys; 6 functions keys PF1 to PF6 with 3 functions each; menu order can be personalized
• Jack plug for external loud speaker + Microphone with speaker incorporate and programmable keys
• TFT display ajustable to 180°
• Display of reception signal, transmit power, channel or frequency, operating voltage, various active functions...
• Dimensions: 122 (W) x 165 (W) x 35 (H) mm
• Weight: 480 gram
• 2 years warranty
