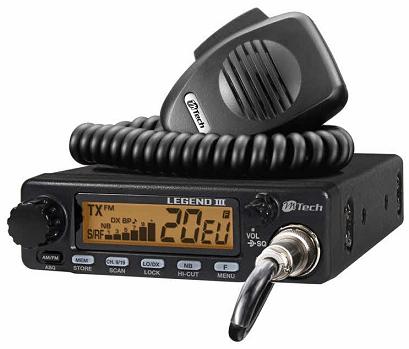

Legend III ^ / President Thomas

PRIJS IS MET GRATIS VERZENDING.

General

- Channels: 40 AM / FM
- Frequency range: 26.965 to 27.405 MHz
- Adjustable Frequency Synthesizer PLL (PLL)
- Frequency tolerance: ± 600 Hz
- Operating Temperature: -10 ° C to +55 ° C
- Microphone: With electret condenser
- Input voltage: 13.2 V DC
- Power consumption: TX full modulation, max 2,0 A
   RX audio output max, max 1,5 A
- Dimensions: 127 x 36 x 148 mm
- Weight: 0.9 kg
- Antenna Connector: UHF SO-239
- Meter LED indication of the relative strength of RF output and received signal
- Filter: Built-in type ANL (automatic noise limiter)

Transmitter
- Power output: 4WAM/4WFM
- Frequency response: 300-3000 Hz band AM / FM
- Output impedance: 50 Ω, unbalanced

Receiver
- Sensitivity: 0.7 uV at 20 dB SINAD (limit 1.4 uV)
- Channel separation: 66 dB
- Mirror frequency suppression: 75 dB
- IF Frequency: Double conversion superheterodyne frequency
   1: 10.695 MHz
   2: 455 KHz
- RF Gain adjustment: Adjust the best reception - above 20 dB (at 1 uV)
- Automatic Gain Control (AGC

- Auto Mute: Adjustable; Threshold less than 1 uV
- Audio Output Power: 2 W max for 8 Ω
- Frequency: 300 Hz to 3000
- Distortion: Less than 10%, 0.5 W, 1 kHz
