Omschrijving: |
PRIJS IS ALL-IN MET GRATIS VERZENDING!
Deze Lincoln II Plus is de "export" versie.
Sommigen noemen deze ook wel de V3+ of de V4 versie.
Deze heeft al het grootste zendvermogen en het grootste frequentiebereik.
Deze Lincoln II Plus bak of zoals U wilt de V3+ of de V4+ bak, hoeft dus niet meer gemodificeerd te worden.
Als optie verkrijgbaar programmeerkabel. klik op deze link.
Features
- Frequenty 24,715 - 31,000 MHz
- Rotary switch and Up/down channel selector
- VFO Mode
- Volume adjustment and ON/OFF
- RF Power
- Manual squelch and ASC
- Multi-functions LCD display
- Frequencies display
- S-meter
- Public Address
- Vox function (Hands free)
- ANL filter , NB and HI-CUT
- RF Gain / Mike gain
- Clarifier
- Channels and memories scan
- 6 Memories
- CTCSS (38 tones)
- DCS (104 codes)
- Dim
- MENU fonction key
- Beep Function
- Roger Beep
- Mode switch AM/FM/LSB/USB/CW
- Dual watch
- Key locking
- SWR (Power Reading /SWR)
- Preset 9/19
- TOT (Time Out Timer) adjustable
- Front microphone plug
- External loudspeaker jack
- Dimensions H x W x D (in mm) : 52 x 170 x 250
Technical characteristics
- General
|
Bands
|
:
|
10
|
|
Modulation modes
|
:
|
AM/FM/LSB/USB/CW
|
|
Frequency ranges
|
:
|
from 24.715 MHz to 30.105 MHz
|
|
CTCSS
|
:
|
38 tones
|
|
DCS
|
:
|
104 codes
|
|
Antenna impedance
|
:
|
50 ohms
|
|
Power supply
|
:
|
13.2 V
|
|
Dimensions H x W x D (in mm)
|
:
|
52 x 170 x 250
|
|
Weight
|
:
|
1.4 kg
|
|
Accessories supplied
|
:
|
power cord with fuse
1 microphone and its hanger
1 mounting bracket with fixing screws
|
- Transmission
|
Frequency allowance
|
:
|
+/- 300 Hz
|
|
Carrier power
|
:
|
12 W AM / 28 W FM / 31 W USB-LSB / 12 W CW
|
|
Transmission interference
|
:
|
inferior to - 50 dBc
|
|
Audio response
|
:
|
300 Hz to 3 kHz
|
|
Emitted power in the adj. channel
|
:
|
inferior to 20 µW
|
|
Microphone sensitivity
|
:
|
3 mV
|
|
Drain
|
:
|
6 A (with modulation)
|
|
Modulated signal distortion
|
:
|
1.8 %
|
- Reception
|
Maxi. sensitivity at 20 dB sinad
|
:
|
0,5 μV -110 dBm (AM)
0,35 μV -116 dBm (FM)
0.28µV-118 dBm (USB/LSB/CW)
|
|
Frequency response
|
:
|
300 Hz to 3 kHz
|
|
Adjacent channel selectivity
|
:
|
60 dB
|
|
Maximum audio power
|
:
|
3 W
|
|
Squelch sensitivity
|
:
|
mini 0.2 μV - 120 dBm
maxi 1 mV - 47 dBm
|
|
Frequency image rejection rate
|
:
|
60 dB
|
|
Intermediate frequency rej. rate
|
:
|
70 dB
|
|
Drain
|
:
|
400 mA nominal, 600 mA max
|

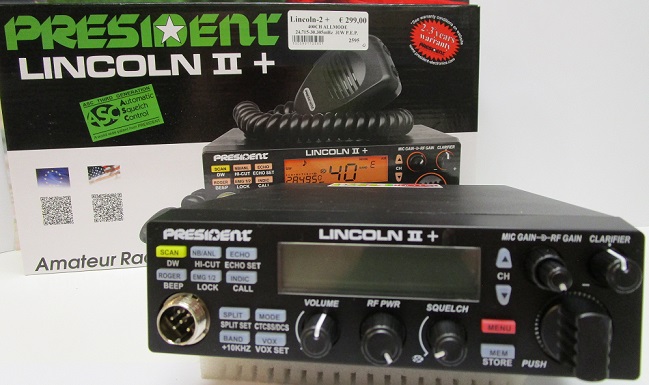

Mogelijk dat de foto en/of het filmpje niet helemaal juist zijn.
Wij leveren de nieuwste President Lincoln 2 Plus uitvoering!
Alle bakken worden geleverd met alle modificaties zowel hardware als software.
|
