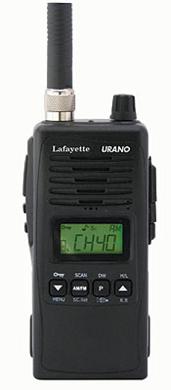

HANDHELD CB TRANSCEIVER 40 CHANNEL AM / FM

• Multistandard
• Auto Squelch (ASCP).
• Large multi-function LCD display with backlight.
• Channel display or relative frequency.
• Channel selector switch Up / Down.
• S-Meter.
• Scan function.
• Roger Beep.
• Dual watch.
• Channel 19 emergency pre-set.
• Switch High / low power.
• Keypad lock.
• Socket for external microphone / speaker connection with 2,5 / 3,5 mm mono

  Technical information
• Frequency range: 26.965 MHz ~ 27.405 MHz (40 channels)
• Power supply: 7,4 Vcc
• Dimensions / Weight H x W x D : 120 x 54 x 35 mm/0.36 kg (with battery)
• Frequency tolerance: ± 200 Hz
• RF Power: 1~3 W AM / 1~4 W FM
• Audio response: 300 Hz ~ 2.5 kHz
• Adjacent channel power: < 20 µW
• Absorption: 1.8 A (with modulation)
• Maximum Sensitivity at 20 dB sinad: 0,5 µV -113 dBm (AM)/ 0,3 µV -116 dBm (FM)
• Frequency response: 300 Hz ~ 2.5 kHz
• Adjacent Channel Selectivity: 60 dB
• Audio Power max: 1 W
• Squelch sensitivity: min. 0.2 µV - 120 dBm/max 1 mV - 47 dBm

  Supplied with: rechargeable battery pack lithium-ion battery 2200 mAh / 7.4 V, wall charger, 20 cm antenna TNC, belt clip and user manual in English and Italian.
