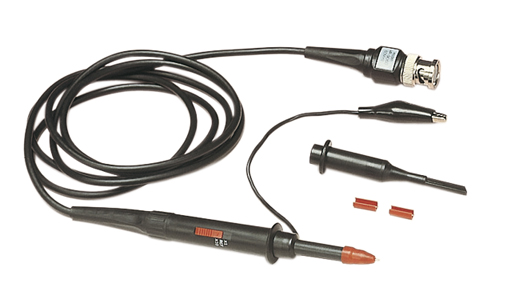

Scope Probe HP-9250

Specification

X 10 POSTION

Bandwidth                   DC – 250Mhz

Input Capacitance        Nominal 16pF

Compensation Range   15pF – 35pF

Attenuation Ratio         10 : 1

Input Resistance           10 Mohm  (9 Mohm Prpbe + 1 Mohm scope)

Ref. Position              Probe tip Grounded via 9Mohm resistor, scope input grounded

X 1 POSITION

Bandwidth                   DC – 10Mhz

Input Capacitance        120pF

Attenuation Ratio         1 : 1

Input Resistance           Same as scope

Max. Input Voltage      600 volt

Cable Length               1.2 Meter
