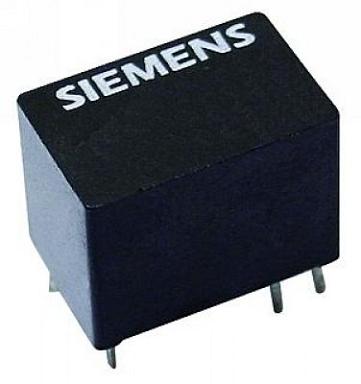

Siemens V23101-D0007-B201

The V23101-D0006-B201 is a Signal Relay with DC coil. This W11-series relay has 1-form-C (1CO) gold-plated AgPd contact with asymmetrical coil terminal assignment. Typical applications such as security devices, electric door openers, duplex intercommunication systems, measurement and controls.

• PCB terminal type
• Small size permitting high packing density
• High shock resistance of 30g
• -40 to 85°C Ambient temperature range
• Waterproof IP67

SPOEL GEGEVENS:

Spoelspanning nominal 24volt DC

Pick-up voltage  18volt DC

Spoelweerstand 1280 ohm

CONTACT GEGEVENS:

Schakel capaciteit: 2ampere 125volt AC / 2ampere 60volt DC

Contact material: Zilver-Palladium, verguld

Klik op deze link voor datasheet.
