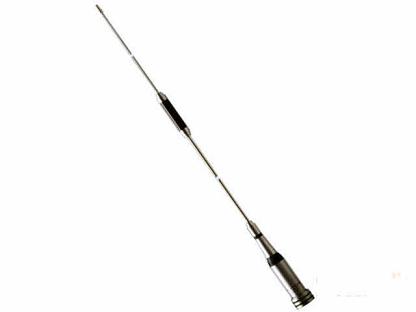

Sirio 2070R

Features:
• Mobile antenna, Dual-band, Omnidirectional
• VHF band Unity-gain,UHF band Low-gain
• Protection from static discharges DC-Ground
• 17/7 PH stainless steel cylindrical whip
• 90° tiltable whip and detachable for car-washes access
• Wide range of optional mounting bases available
P/N 2210305.05 HP 2070
HP 2070 is available for USA ham band (146 & 445 MHz)

Electrical Data
• Type: VHF 1/4 λ , UHF 5/8 λ
• Design frequency: VHF 145 MHz, UHF 435 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Gain: VHF 0 dB, UHF 2 dB ref. to a λ /4 whip
• Bandwidth at V.S.W.R. 2:1: VHF 10 MHz, UHF 25 MHz
• V.S.W.R. at res. freq.: ≤ 1.5:1
• Max Power: VHF 150 Watts, UHF 100 Watts
• Feed System / Position: Transformer DC-ground / Base
• Conector type: UHF-male (PL 259)

Mechanical Data
• Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon
• Height (approx.): 445 mm
• Weight (approx.): 270 gr
