Rens Electronics

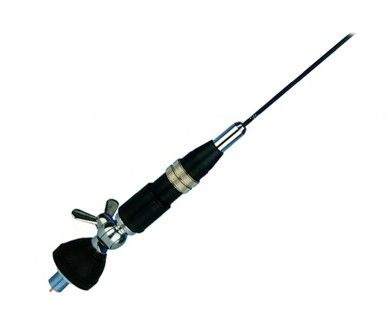

Sirio mini snake

Features:
• CB Mobile antenna
• Tunable by screw or unscrew the metallic ring
• 17/7 PH tapered stainless steel whip
• 180° inclination and adjustable whip, detachable for car-wash
• Wide range of optional mounting bases available
• Suitable for magnetic mount
P/N 2204406.01 MINI SNAKE 27

Electrical Data
• Type: CB base loaded
• Frequency range tunable: 26.5...27.4 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Bandwidth @ SWR ≤ 2:
MINI SNAKE 27: ≥ 1000 KHz (90 channel)
• SWR @ res. freq.: ≤ 1.2
• Max. power: 10 Watts (CW) continuous, 40 Watts (CW) short time
• Standard mount:
MINI SNAKE 27: "N"
• Cable lenght / Type:
MINI SNAKE 27: 4 m / RG 58

Mechanical Data
• Materials: Brass, Copper, Nylon, Stainless Steel
• Height (approx.):
MINI SNAKE 27: 650 mm
• Weight (approx.):
MINI SNAKE 27: 350 gr
• Mounting hole: Ø 12.5 mm (SNAKE 27, MINI SNAKE 27 only)
