Rens Electronics

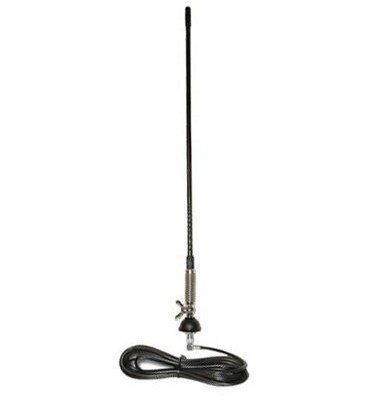

Sirio T27 T3 / T4

Features:
• CB Mobile antenna
• Tunable acting on the whip lenght
• 17/7 PH tapered stainless steel whip
• 180° inclination and adjustable whip, detachable for car-wash
• Suitable for magnetic mount
P/N 2207015.01 T3-27

Electrical Data
• Type: Logarithmic loaded
• Frequency range: 26.9-27.5 MHz
• Impedance: 50Ω unbalanced
• Radiation (H-plane): 360° omnidirectional
• Polarization: vertical
• Bandwidth @ SWR ≤ 2: ≥ 700 KHz
• SWR @ res. freq.: ≤ 1.2
• Max. power:
20 Watts (CW) continuous
100 Watts (CW) short time
• Mounting: hole Ø 12.5 mm
• Cable lenght / Type: 4 m / RG 58

Mechanical Data
• Materials: Brass, Nylon, Stainless Steel
• Height (approx.):620 mm
• Weight (approx.): 400 gr
