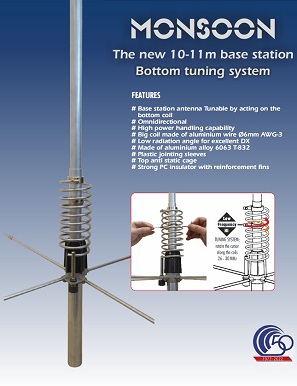

Sirio New Monsoon AKTIE PRIJS!!!

TECHNICAL DATA
Type: ......................................................... 5/8 l ground plane
Impedance: .................................................................... 50 W
Frequency range: ..................................... 26 ... 30 MHz tunable
Radiation: ........................................................ omnidirectional
Polarization: ....................................................... linear vertical
SWR @ res. freq.: ..................................... £ 1.2 @ 27.2 MHz
Max. power: ................................. 1000 Watts (CW) continuous
..................................................... 3000 Watts (CW) short time
Bandwidth @ SWR £ 2: ................... ³ 1400 kHz @27.2 MHz
Gain: ........................................................... 1.2 dBd, 3.35 dBi
Wind resistance: .......................................... 130 km/h, 81 mi/h
Height (approx.): ........................................... 7180 mm, 23.5 ft
Weight (approx.): .............................................. 3000 gr, 6.6 lb
Radial length (approx.): ................................. 2000 mm, 78.7 in
Connector: ............................................................. UHF-female
Mounting mast: ................................ Ø 35-42 mm, Ø 1.4-1.6 in

In verband met de lengte kunnen wij de antenne niet versturen.

Is dan ook uitsluitend op te halen in onze winkel.
