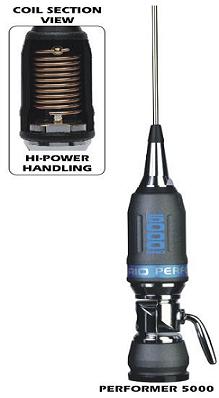

Sirio Performer 5000 PL

Features:
• CB & 10m Mobile antennas
• Very High power handling capability
• Tunable from 27 to 28.5 MHz
• Protection from static discharges DC-Ground
• 17/7 PH tapered stainless steel whip
• Whip detachable for car-wash
• Suitable for magnetic mount installation
P/N 2202205.43 TURBO-5000 PL

Electrical Data
• Type: base loaded
• Impedance: 50Ω unbalanced
• Frequency range: 27-28.5 MHz
• Polarization: vertical
• SWR @ res. freq.: ≤ 1.2
• Bandwidth @ SWR ≤ 2: ≥ 2000 KHz
• Max. power:
1500 Watts (CW) continuous
5000 Watts (CW) short time

Mechanical Data
• Mounting:
TURBO-5000 PL: UHF-male (PL 259)
• Cable lenght/Type:
PL version: not supplied
Standard: for power up to 600 Watts max: 4m RG58
Hi power: for power up to 2000 Watts max: 4m RG303 teflon
• Height (approx.): 1965 mm
• Weight (approx.): 650 gr

Het is dus alleen de antenne

In verband met de afmetingen kan deze alleen worden afgehaald in onze winkel te Schagen.

Wij kunnen deze dan ook niet versturen.
