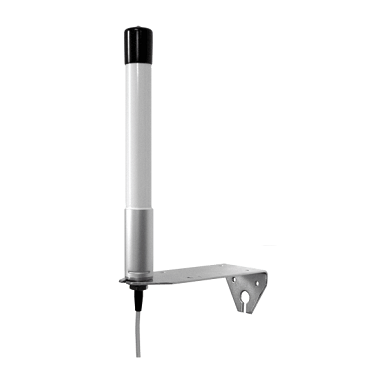

Sirio SPO 868-915-6 N-f

IS HET ZELFDE ALS DE GP868C MAAR DAN IN EEN POLYESTER PIJP

·  Type: Colinear

·  Radiation: Omnidirectional

·  Polarization: Linear vertical

·  Frequency range: 868-915 MHz @ SWR ?1.5 No tuning required

·  Systems: ISM/SIGFOX/LoRa 868MHz, ISM/SIGFOX/LoRa 915MHz

·  Gain: 3.8 dBd - 6 dBi

·  Max Power: 20 W (CW)

Connector:

·  SPO 868-915-6 N-f: N-female

Mechanical Data:

·  Materials: Anodized Aluminium, Nickel plated brass, Fiberglass, PCB

·  Height (approx): 840 mm / 2.76 ft

·  Weight (approx): SPO 868-915-6 N-f :460 gr / 1.01 lb

·  Mounting type: On-Mast, On-Wall
