Product details
• Multi-Standard including 80 Channel (40ch CEPT + 40ch UK)
• Selectable LCD backlighting to suit your preference (Red / Purple / Blue)
• Suitable for Car, Van or Truck with selectable voltage 12V/24V use
• Dynamic Squelch System (DSS)
• Emergency Channel 9/19 function
• Compact Size: 124mm (w) x 37mm (h) x 135mm (d)

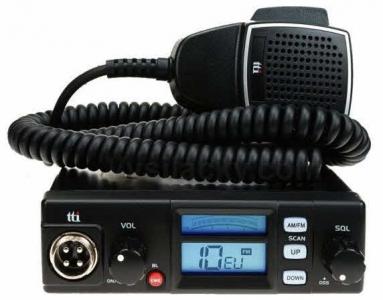

The TTI TCB-565 is TTI's entry level CB radio similar to their TCB-550 model, but has been designed to give some upgraded features.
The TCB-565 has slim and compact design features enabling it to be easily installed in modern vehicles where space is at a premium. The up to date design will compliment any modern car styling to suit the customers needs.
The TCB-565 includes a new upgraded Dynamic Squelch (DSS), changeable Backlighting System for the LCD display, and 12/24v Dual Voltage operation. It is also multi-standard so it is one of the lowest price radio that can be used across Europe, an ideal starting point for a first time CB user.
Transmitter
• Power Output: Duty cycle 10% 4Watts @13.8V DC
• Modulation: AM : from 85% to 95% FM : 1.8KHz +- 0.2KHz
• Frequency: Response : 300Hz to 3000Hz
• Output Impedance: 50 ohms, Unbalanced
• Harmonic Suppression: Less than -36dBm
• Current Drain: AM Full Mod. 1.6A Max.
Receiver
• Receiving system: Dual conversion super heterodyne
• IF Frequencies: Double Conversion 1st 10.695MHz / 2nd 455KHz
0.7µV for 10dB (S+N)/N in AM Mode
0.5uV for 20dB SINAD in FM Mode
• Audio Output Power: 4.0W @8 Ohm
• Audio Distortion: LESS then 8% @ 1KHz
• Image rejection: -53dBm
• Adjacent Channel Rejection: -53dBm
• Conducted Spurious: More than 60 dB
• Frequency Response: 300 to 2500Hz
• Built-in Speaker: 8 ohms, round
• Squelch: Adjustable; Threshold less than 1 microvolt
|
