Rens Electronics

Triplexer Comet CFX-431A
Artikelcode:	4098
Prijs:	EUR 115.00
Verzendkosten:	EUR 0.00
Voorraad:	in voorraad

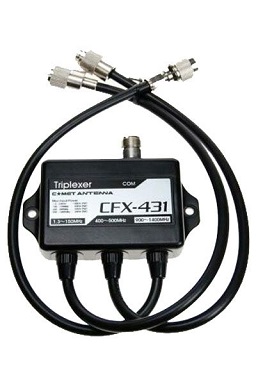

Omschrijving:	The Comet CFX 431A Triplexer, for transmitting and rceiving all three bands 144/433/1200 Mhz at the same time. The combined high quality filters of the CFX 431A work to prevent occurence of TVI, and the isolation between the connectors is over 50dB. Features : · BandPass Fequency and Input Loss : 1.3 - 150 Mhz Less than 0.2dB · BandPass Fequency and Input Loss : 350 - 500 Mhz Less than 0.3dB · BandPass Fequency and Input Loss : 900 -1400 Mhz Less than 0.4dB · Impedance : 50 Ohms · V.S.W.R. Less than 1:1.2 · Maximum Power 1.3 - 60 Mhz 1000 Watts (PEP) · Maximum Power 100 - 500 Mhz 800 Watts (PEP) · Maximum Power 400 - 500 Mhz 500 Watts (PEP) · Maximum Power 900 - 1400 Mhz 200 Watts (PEP) · Input N Type Socket · Output Leads, 1 x Pl259 (1.3 - 150 MHz), 1 x N Type (350-500 MHz) 1 x N Type (900-1400 MHz) · Size : W66 x D90 x H26mm
Verzendkosten:	binnenland: EUR 6.95 buitenland: EUR 25.00
