Rens Electronics

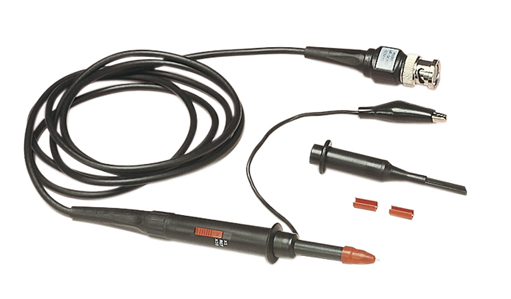

Scope Probe 9100

Specification

X 10 POSTION

Bandwidth                   DC – 100Mhz

Input Capacitance        Nominal 18pF

Compensation Range   20pF – 35pF

Attenuation Ratio         10 : 1

Input Resistance           10 Mohm  (9 Mohm Prpbe + 1 Mohm scope)

Ref. Position              Probe tip Grounded via 9Mohm resistor, scope input grounded

X 1 POSITION

Bandwidth                   DC – 10Mhz

Input Capacitance        150pF

Attenuation Ratio         1 : 1

Input Resistance           Same as scope

Max. Input Voltage      600 volt

Cable Length               1.4 Meter
